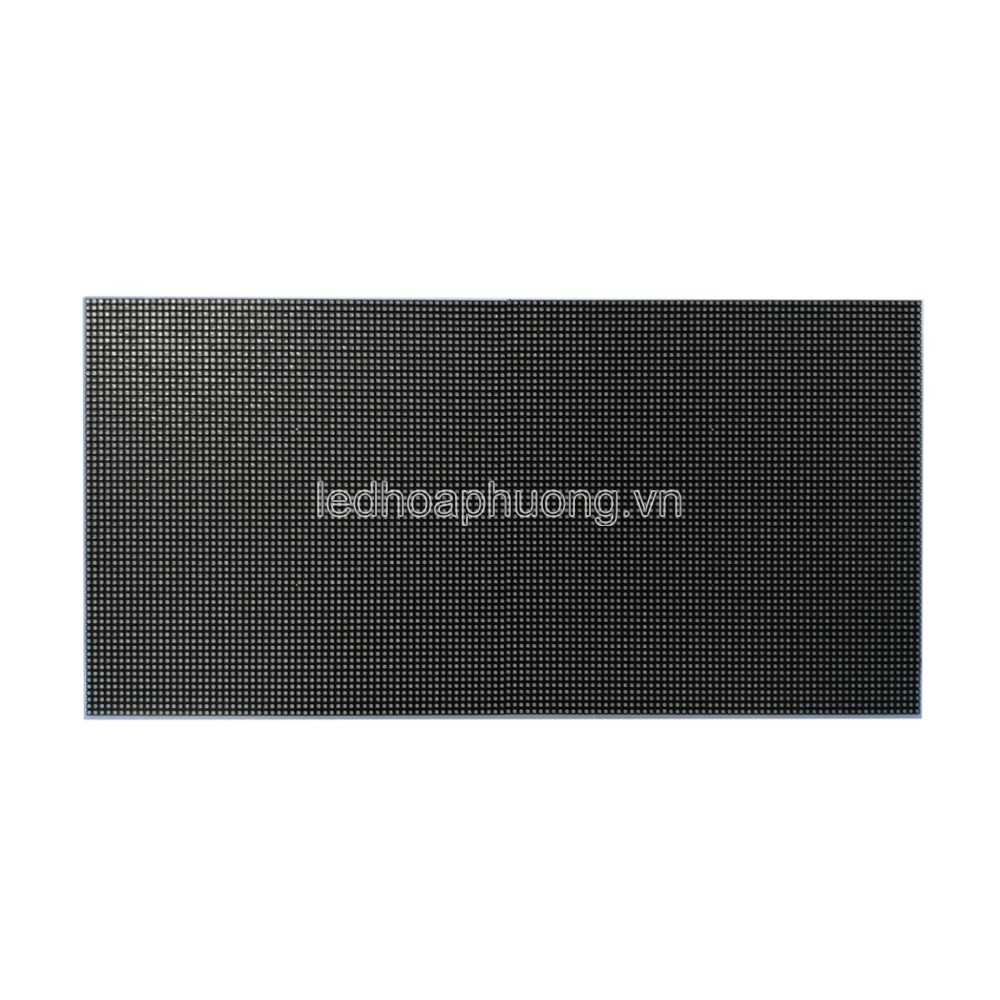

GKGD indoor full color p2.5 led board/module Led display 2.5mm
Product Description
Parameter Value
Product Model P2.5 indoor full color display
Pixel Pitch 2.5mm
Driving Mode 1/32 scan constant current
Pixel Configuration 1R1G1B
LED Type 3-in-1 black SMD2121
Module Size 320×160mm
Cabinet Size W640mm×H640mm×D60mm
Cabinet Weight 7.5kgs
Area 0.2304m²
Material Die-casting magnesium alloy
Ingress Protection Front/Rear IP34
Interface HUB75
Pixel Density 160000 dots/m²
Viewing Angle H≥120° V≥120°
Input Voltage 220VAC±15%
Max./Avg. Power Comsumption 351/175 W/m²
Brightness 800-1200cd/m²
Brightness Conformity >95%
Video Frame Rate 60 frames/s
Refresh Rate ≥1920Hz
Gray Level 16384
Recommended Viewing Distance ≥2.5m
Decay Rate ≤5%/year
Defective Dots Rate <0.0001 (LED industry standard<0.0003)
MTBF ≥10000 hours
Lifespan ≥100000 hours
Control Way Computer, Video-synchronous, Real-time, Off-line, Wireless, Internet etc.
Input Signal Format (with video processer) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP etc.
Protective Function Over Heat/Over Load/Power Down/Power Leakage/Lightning Protection etc.
Operating Temperature/Humidity -10℃~+40℃/10-80% no Condensation
Storage Temperature/Humidity -20℃~+60℃/10-85% no Condensation
