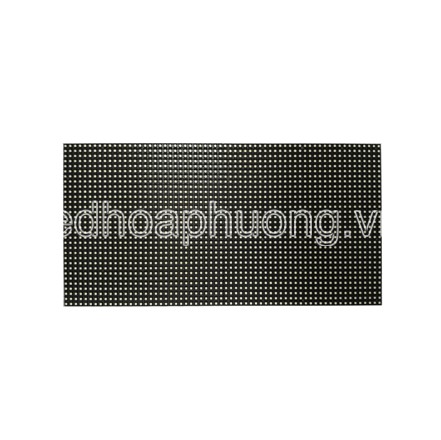

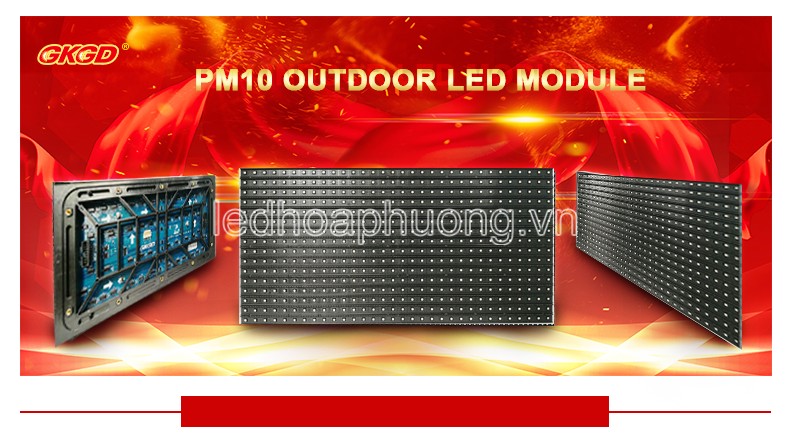

P10 outdoor GKGD

Nhà cung cấp: Công ty TNHH Led Hoa Phượng Việt Nam
Mã sản phẩm: (Đang cập nhật...)
Tình trạng: Còn hàng
210.000₫
Pixel pitch p10p10 GLmm Pixel Density 40,000 dots/m² Pixel configuration 1R1G1B LED type 3-in-1 SMD2727 ...
Hãy gọi Liên hệ 0948 222 505

Pixel pitch

p10p10 GLmm

Pixel Density

40,000 dots/m²

Pixel configuration

1R1G1B

LED type

3-in-1 SMD2727

Module size

320*160mm

Module weight

450g

Module resolution

32*16dots

Module quantity

19.53 pcs/m²

Min. Viewing Distance

≥5m

Brightness

≥5500 cd/m²

Viewing Angle

H≤120°  V≤120°

Driving Mode

1/2 scan constant current driving

Interface

HUB75

Input voltage

4.8-5.5VDC

Max. Power Consumption

713 w/m²

Avg. Power Consumption

286 w/m²

Max. Current

7.3A

Frame rate

60 frames/s

Refresh Rate

1920Hz

Defective Dots Rate

<0.0001 (LED display line standard: ≤ 0.0003)

Decay Rate

≤5%/year

Brightness Conformity

>95%

MTBF

≥10000 hours

Lifespan

≥50000 hours

Protective function

Over-heat/Over-load /Power-down /Power-leakage/Lightning

-protection etc.

Operating Temperature

-10℃~+40℃

Operating Humidity

10-80% no condensation

Storage Temperature

-20℃~+60℃

Storage Humidity

10-85% no condensation

Control System Parameter

Color temperature

Adjustable by software

Brightness control

256 levels, automatic adjustment.

Control way

Computer, real-time, off-line, wireless, network etc.

Communication Distance

Cat5 UTP 100 meters, max. 130 meters; or optical fiber.
